Commercial Laminate Hot Press Machine For Plywood / Door Skin

Ask Lasest Price
Brand Name :	HUHASHENG
Model Number :	HSYJ-LF
Certification :	CE ISO9001
Price :	Negotiation
Supply Ability :	30 Set/Sets per Month
Delivery Time :	35 working days after down payment

Add to Cart

Product Details
Company Profile

Commercial Laminate Hot Press Machine For Plywood / Door Skin

Product Description

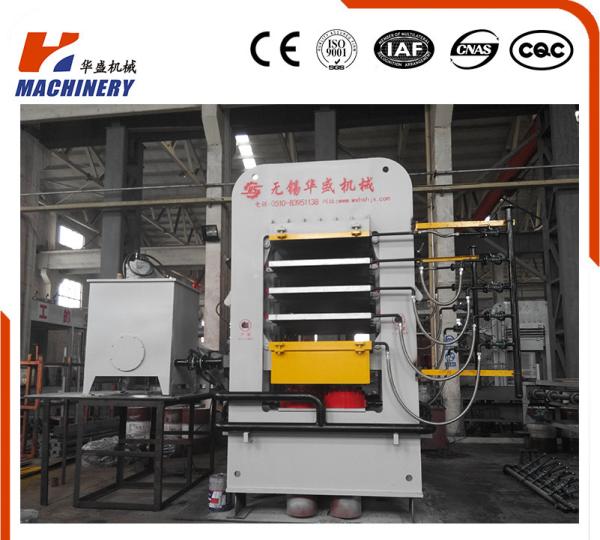

HSYJ-800T to 1600T Series hydraulic press machine for door skin suitable for moulding and veneering of melamine door skin,natural wood door skin. This hydraulic press machine for door skin adopts spring synchronous closed structure, can stop at any position according to the production preocess(or position-limit control), and the residence time can be adjusted. The press holding time and pressure set automatic control. Two operaing mode(manual and automatic) are convenient for customers to choose.

Ordinary multi-layer press is mainly suitable for the production of wood panels,laminated-board,multilayer plywood,and can produce the high-glossy board.the main feature of the multilayer press is the number of layers,one can press 4 to a dozen.because it does not have an automatic feeding in/out system in its standard style,so,the press is more dependent on manual operation.but,if required,we can supply the automatic feeding in/out system to customers.

This kind of hot press primarily refers to the special multilayer press,it is not noly has all the advances of the normally multilayer press ,but also can with the function of heating oil cold in and cold out,and it is mainly used for high glossy board in currently marcket.

Type	Total pressure(KN)	Diameter of the main oil cylinder(mm)	Quantity of the main oil cylinder	size
HSYJ--ML150	1500	Φ140	4	4’*8’ or customized
HSYJ--ML200	2000	Φ160	4
HSYJ--ML250	2500	Φ180	4
HSYJ--ML300	3000	Φ200	4
HSYJ--ML900	9000	Φ280	6
HSYJ--ML1200	12000	Φ320	6
HSYJ--ML1400	14000	Φ340	6
HSYJ--ML1600A	16000	Φ360	6
HSYJ--ML1600B	16000	Φ360	6

Multilayer door press machine suitable for moulding and veneering of melamine door skin,natural wood door skin.
Adopts spring synchronous closed structure,it could stop at any position according to the production process.
The residence time can be adjusted. The press holding time and pressure set automatic control.
Two operaing mode(manual and automatic) optional for customer easy operation.

1. Short cycle hot press for door skin

2. Door skin laminating hot press
3. Melamine MDF door skin
4. Veneer MDF door skin

FAQ

Q1. You are trading company or manufacturer?
----- We are manufacturer, major in short cycle press for 28 years OEM.

Q2. Can I send samples for testing?
----- If you customized hot press in our factory, after receiving down payment, we can make testing for you .

Q3. Can you accept OEM or ODM?
----- Of course, any kind and color can be provided according to your requirements.

Q4. Have you ever exported to foreign countries?
----- We have exported short cycle press to Russia, India, Vietnam, Thailand, Dubai and so on.

Q5.What is your delivery time?
A:It depends on your order item and quantity,35-70 days accordingly

Q6:Is the price negotiable?
A:Yes,the price is negotiable.The price we give is based on the cost and it is quite reasonable.Normally price depend on your quantity and quality demand.
